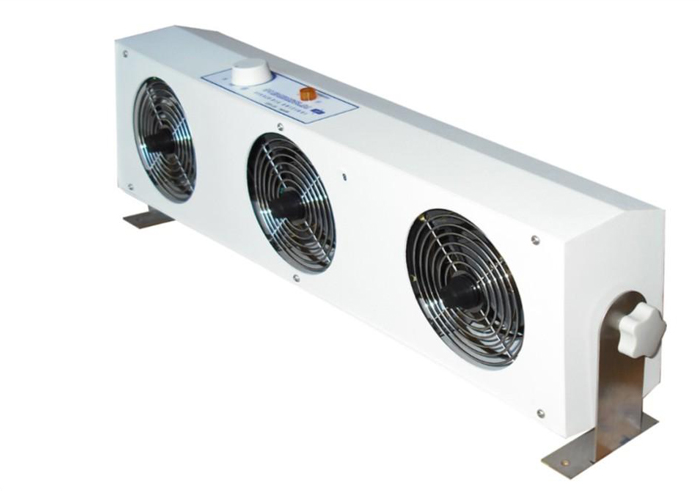

SUSPENDED IONIZING AIR BLOWER, (HT2612)



It is designed as the theory of alternating current electrostatic eliminator, belongs to electrical category.Apply to eliminate electrostatic in a space. The double header ionizing air volume can be adjusted, including high voltage gene-rator.



 Specification：

Operating Voltage

110V/60HZ OR 220V/50HZ

Current Consumption

0.9A OR 0.4A

Operating Temperature

-10～50℃

Size

600mm(L)×90mm(W)×170mm(H)

Weight

7.8Kg

Air Volume

80～220CFM

Ion Balance

0V±10V

Air Coverage

40cm×90cm



 Decay tdst Results：

Testing Conditions

Test voltage：1KV-100V Operating Voltage：110/220V Temperature：22℃ Test Humidity：75%RH

Distance

300mm

600mm

900mm

1200mm

Left300mm

1.3s

2.4s

2.8s

4.9s

Center

2.8s

1.7s

3.2s

3.6s

Right300mm

1.2s
